VEX VR Maze Challenge

🎯 Objective

Navigate the maze from starting position A to the double red block finish line using only sensors. You cannot use deterministic blocks like "drive forward for 12 inches" – you must rely on the Distance Sensor and Color Sensor to guide your robot!

⚙️ Setup Instructions

Open VEX VR: Go to https://vr.vex.com/
Enter Class Code: DRKNVD
Save Your File: Click "Save As" and name it YourName_maze.vrblocks

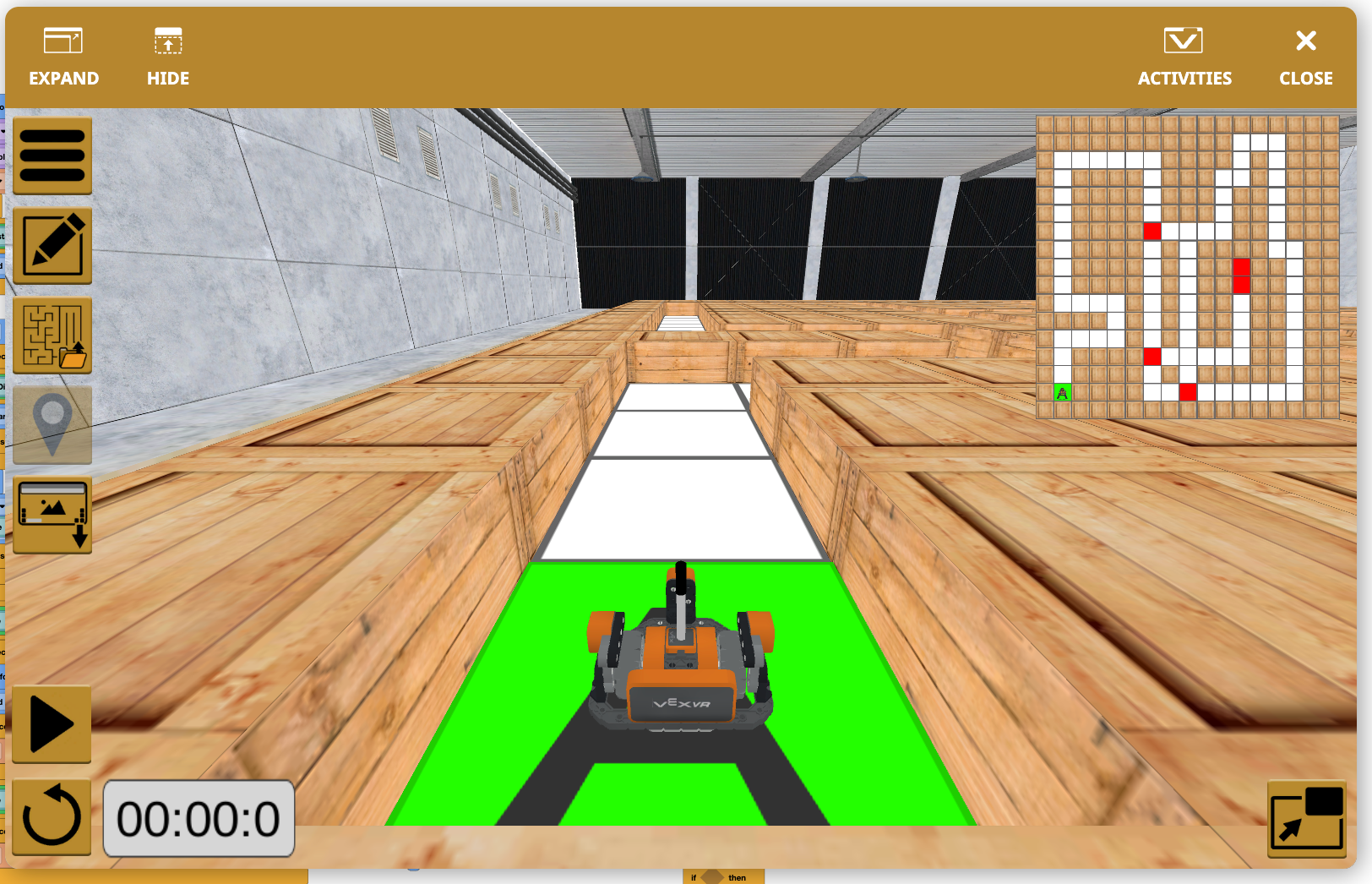

Select Playground: Choose Maze+ and click "Open"
Load the Maze File:
- Click the icon with a maze and folder on it
- Navigate to: Teams → Class Notebook → [Your Name] → Unit 1 Intro to VEX → Sensor Quiz
- Load the file: VRP7Robotics.vrmaze

📋 Challenge Requirements

✅ What You MUST Do:

Start at position A (green square)
Navigate to the double red block at the end
Use sensors only to make decisions
Use a counter algorithm to track red blocks
Create a wall follower OR turn counter algorithm
Use the Stop Project block at the finish

❌ What You CANNOT Do:

Do NOT use deterministic blocks like "drive forward for ___ inches"

💡 Programming Concepts You'll Need

1. Distance Sensor

Use the Distance Sensor to:

Check if there's a wall in front of you
Decide when to turn
Detect when you're close to obstacles

Example usage:

if FrontDistance in inches >= 8 then... (wall is far - keep going)
if FrontDistance in inches < 8 then... (wall is close - need to turn)

2. Color Sensor (Red Block Counting)

Use the Color Sensor to:

Detect red blocks in the maze
Count how many red blocks you've passed
Make different decisions based on the count

Key variables:

turnCount – tracks what turn you've encountered with the distance sensor
colorCount – helps count color detections

3. Counter Algorithm Pattern

You'll need to create a counter that:

Detects when the robot sees a red block
Increases a count variable
Makes different turning decisions based on the count
Example: 1st red = turn right, 2nd red = turn left, 3rd red = turn right, etc.

⚠️ CRITICAL: The Red Block Counting Challenge!

THE PROBLEM:

When your robot drives over a red block, the Color Sensor reads "red" many times per second. Without proper timing, your counter will increment multiple times for the SAME red block!

Example of what goes wrong:

Robot sees red block #1
Counter goes: 1... 2... 3... 4... 5... (while still on the same block!)
Your turns are now all messed up!

THE SOLUTION:

Use wait blocks to give your robot time to clear the red block before counting again.

Scenario A - Driving Straight Through a Red Block:

If detect red AND colorCount == 0:
    Change colorCount by 1
    Wait 1 second          ← This lets the robot fully drive past the red
    Change colorCount by 0  ← Reset to detect the next red

Time needed: About 1 second to drive straight through

Scenario B - Turning at a Red Block:

If detect red AND need to turn:
    Stop driving
    Wait 0.5 seconds       ← Pause to make sure you counted it once
    Turn right (or left)
    Wait 0.5 seconds       ← Give time to complete the turn
    Drive forward
    Wait 0.5 seconds       ← Make sure you're clear of the red block

Time needed: About 0.5-1 second total with waits before and after the turn

KEY TIMING TIPS:

⏱️ Straight through: Use a 1 second wait to clear the red block
⏱️ Turning: Use 0.5 second waits before and after the turn
⏱️ Experiment with times between 0.2-1 seconds if your robot is counting wrong
⏱️ Too short = counts multiple times on same block
⏱️ Too long = robot moves too slowly (but still works!)

🧭 Navigation Strategy - Choose ONE!

Option A - Wall Follower ⭐

(More Efficient)

This approach uses the Distance Sensor to follow walls:

Continuously check FrontDistance
If wall is far ahead → keep driving forward
If wall is close ahead → turn based on distance sensor
The robot "feels" its way through the maze

Option B - Turn Counter 💡

(More Logical for Beginners)

This approach uses the Distance Sensor to detect when to turn, then uses a counter to decide direction:

Check FrontDistance to know when you've hit a wall
When wall detected Set counter
Use if-then: "If turnCount == 1, turn right"

Logic Pattern:

Forever:
    If FrontDistance < 8 inches:
        Stop driving

        If turnCount == 1:
            Turn right
            Wait 0.5 seconds
            Set TurnCount to 2

        If turnCount == 2:
            Turn left
            Wait 0.5 seconds
            Set TurnCount to 1

This method requires more code (separate if-statements for each turn), but it's easier to understand because you're explicitly telling the robot what to do at each turn.

🧩 Block Types You'll Use

Refer to the example block images provided to help you build your program. You should use:

Forever loops – to continuously check sensors
If-then statements – to make decisions based on sensor values
Drive forward – basic movement (no distance specified!)
Turn right/left – for navigation (with degree amounts like 90°)
Wait blocks – CRITICAL for red block counting! (0.2-1 seconds)
Stop driving – to pause movement before turning
Set/Change variables – for your counters (turnCount, colorCount)
Comparison operators – to check sensor values (>, <, =, >=)
And/Or logic – to combine conditions
Stop Project – to end the program at the finish line

💪 Tips for Success

Master the wait times first! This is the #1 issue students face
Test frequently! Run your code often to see if counters work correctly
Watch your counter values – if turnCount jumps from 1 to 5, you need longer waits!
Start with longer waits (1 second) and make them shorter if needed
The finish line is special: Stop at the double red block, not single reds
Plan your turns: Write down: Red 1 = right, Red 2 = left, Red 3 = right, etc.
Use colorCount as a lock: Set to 1 when detecting red, reset to 0 after clearing
Start simple: Get ONE red block detection working first, then add more
Debug systematically: If counter is wrong, focus ONLY on wait times first
Distance matters: Experiment with thresholds (8 inches vs 6 inches)

🔧 Common Challenges & Solutions

Problem: Robot counts the same red block multiple times (turnCount jumps from 1 to 4!)

Solution: Add or increase your wait time after detecting red (try 1 second for straight, 0.5 seconds for turns)

Solution: Use colorCount as a "lock" - only count when colorCount == 0

Problem: Robot turns at the wrong spots

Solution: Check that your turnCount values match the actual turn sequence you need

Solution: Make sure you're resetting colorCount to 0 after clearing each red block

Problem: Robot gets stuck in a corner

Solution: Make sure your FrontDistance threshold is appropriate (try 8 inches)

Solution: Check that you have "drive forward" after your turns

Problem: Robot doesn't stop at the double red block

Solution: You need special logic to detect TWO red blocks in a row, not just one

Solution: Check if turnCount reaches a specific number to trigger Stop Project

Problem: Robot moves too slowly

Solution: Your wait times might be too long - try reducing from 1 second to 0.5 seconds

Solution: This is okay! Better to be slow and accurate than fast and wrong!

✅ Success Criteria

Your program is successful when:

The robot starts at position A
The robot navigates through the entire maze using the Distance and Color Sensor
The robot counts each red block exactly ONCE (no double-counting!)
The robot correctly turns at each red block using the counter
The robot reaches the double red block finish line
The program stops using the Stop Project block
No deterministic blocks are used (no "drive forward 12 inches" type commands)
Only sensors (Distance and Color) are used for navigation decisions

📤 Submission Requirements

When you complete the challenge, you must submit THREE deliverables to:

Teams → Class Notebook → [Your Name] → Unit 1 Intro to VEX → Sensor Quiz

Deliverable 1: Program File

Save your file as: YourName_maze.vrblocks
Upload to the Sensor Quiz folder

Deliverable 2: Screenshot of Visual Block Code

Take a screenshot showing your complete block code
Make sure ALL blocks are visible in the screenshot
You may need to zoom out or take multiple screenshots
Save as: YourName_maze_code.png (or .jpg)
Upload to the Sensor Quiz folder

Deliverable 3: Video of Robot Running the Maze

Use Windows Screen Capture to record your robot successfully completing the maze
The video should show:
- The robot starting at position A
- The robot navigating through the entire maze
- The robot correctly turning at red blocks
- The robot reaching the double red block finish line
- The program stopping
Save as: YourName_maze_video.mp4
Upload to the Sensor Quiz folder

How to capture video on Windows:

Press Windows Key + G to open Xbox Game Bar
Click the Record button (circle icon) or press Windows Key + Alt + R
Run your maze program
Stop recording when complete
Video will be saved to your Videos/Captures folder

📊 Grading Rubric

Criteria	Points	Description
Distance Sensor Usage	0.7	Robot uses Distance Sensor correctly at least once to make a navigation decision (e.g., detecting walls, determining when to turn).
Color Sensor Usage	0.7	Robot uses Color Sensor correctly at least once to detect red blocks. No deterministic blocks used (no "drive forward X inches").
Counter Algorithm	1.0	Program uses a counter variable (turnCount or similar) to track turns and make navigation decisions.
Successful Navigation	1.0	Robot starts at position A and successfully navigates through the entire maze to reach the double red block finish line.
Submissions Complete	0.6	All three deliverables submitted: .vrblocks file, screenshot of code, and video of robot completing maze or attempting to complete maze.
TOTAL	4.0	Maximum Points

Grade Scale:

A: 3.6 - 4.0 points
B: 2.6 - 3.5 points
C: 1.6 - 2.5 points
D: 0.6 - 1.5 points
F: 0 - 0.5 points

📝 Before You Submit - Final Checklist

My robot stops at the finish line using Stop Project
I have tested my program at least 3 times successfully
I have saved my .vrblocks file with my name
I have taken a screenshot of my complete code
I have recorded a video of my robot completing the maze
All three files are uploaded to the Sensor Quiz folder

🚀 Ready to Start?

Launch VEX VR

Good luck, robotics engineers!
Remember: Wait blocks are your best friend for accurate counting!
Use your sensor knowledge, counter logic, and problem-solving skills to conquer the maze! 🤖🏁
